GWR 14xx / 58xx Class 0-4-2t

Page updated 23rd January 2015

Loco built by M. Taylor

Boxed Kit:-  200.00; Etchings & pressings 70.00

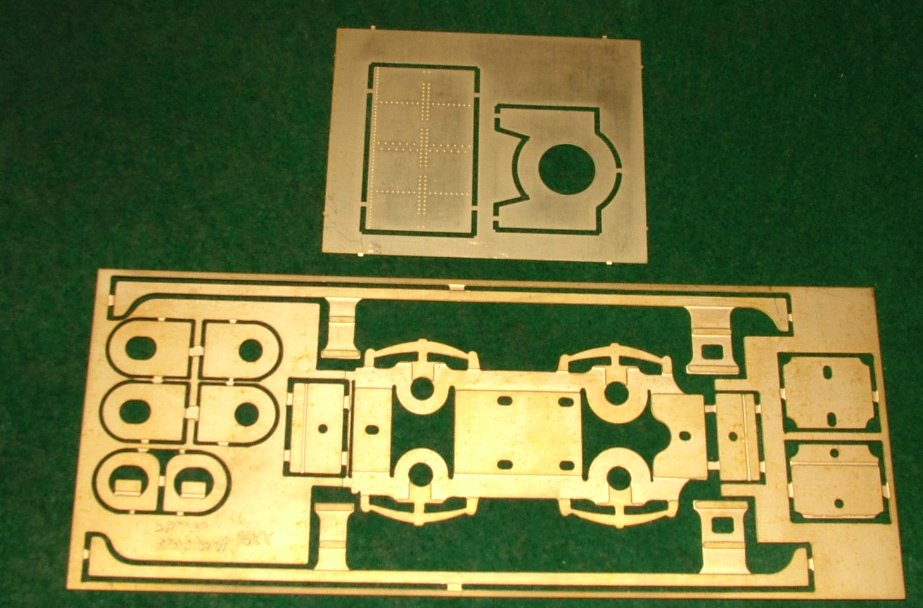

Frames, running plate, tanks, cab, bunker, firebox, boiler, smokebox, brake gear,

smokebox door pressings and smokebox ring pressings.

Handrail knobs and wire, plus a full set of lost wax brass castings,

white metal back head. Coupling rods and screw couplings.



Wheels, motor, paint, Transfers and # plates not included in the kit



Castings available separately

009 Collett parallel buffers 13.00 047 Bake hanger & beam (pairs x 2) 7.00
055 Collett taper buffers 13.00 048 Junction  boxes (pair) 2.00
006 Safety v/v & bonnet 8.00 049 Regulator couplings (pair) 3.50
008 Tank lifting Bkts (set) 3.10 051 Screw reverser 4.50
012 Rear oval lid sand boxes 5.60 052 Whistles & sheild 4.50
014 Dome 8.00

127 Vacuum & steam heating pipes

8.75
015 Chimney 8.00 SBR9 Smokebox door ring pressing 3.50
020 Tank fillers (pair) 5.60 SBD2 Smokebox door pressing 3.50
021 Top feed cover 5.00
022 AWS bell & battery box 2.50 Walsall Model Industries:- wheels
024 Brake column 2.10 S29 & D109 2 Rail Fine Scale 59.92
025 Auto brake mechanism 2.50
026 Trailing axle box & springs pr 10.00 Slaters Plastikard:- wheels
028 Tool boxes 5.00

2 Rail Fine Scale

54.00
029 Battery box 2.50
030 Auto train bell & battery box 2.50

Premier Components coupling rods

14.00
036 Front sand boxes 5.60
037 smokebox door handle 3.25

Northampton Models Supplies backhead

9.00
040 S/box oil pipe covers [3off] 5.00
042 Firebox oil pipe cover 1.50

P&P @ cost Royal Mail 'Sign For'.

043 Tank vents (pair) 2.50


Prices may vary please check when ordering

Sans Pareil and Martello for more GWR castings
