GWR Castle Class 4-6-0

Updated 2nd October 2015

Boxed Kit (loco) 260.00

   Including Tender Kit 340.00

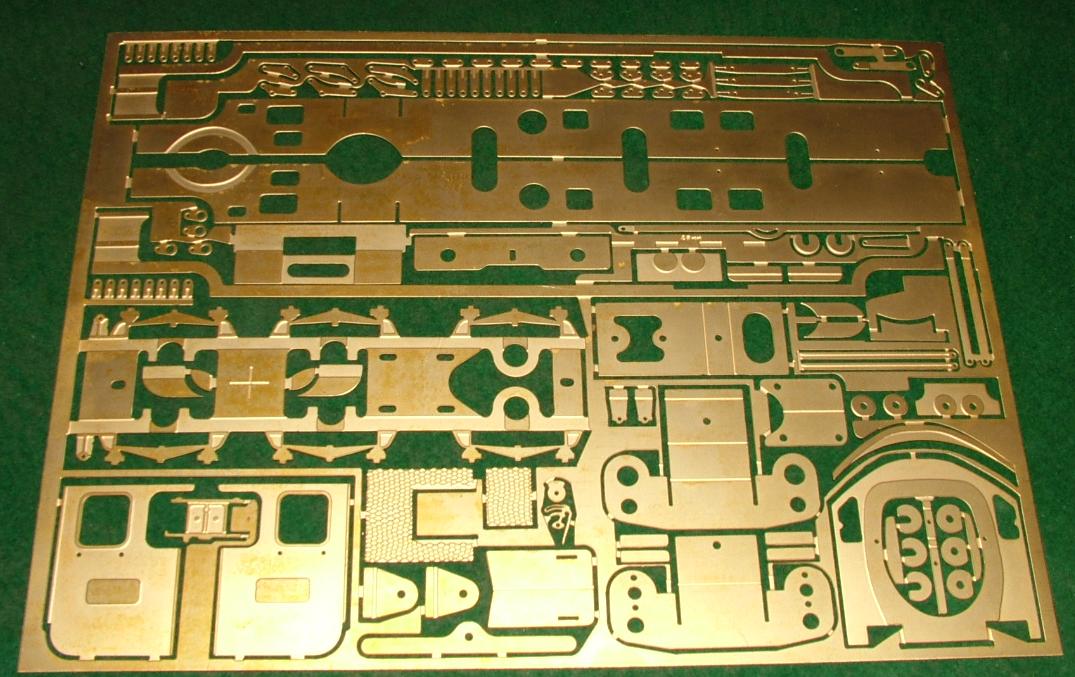

CLE 10 Frames, Cab, Cylinders etc.

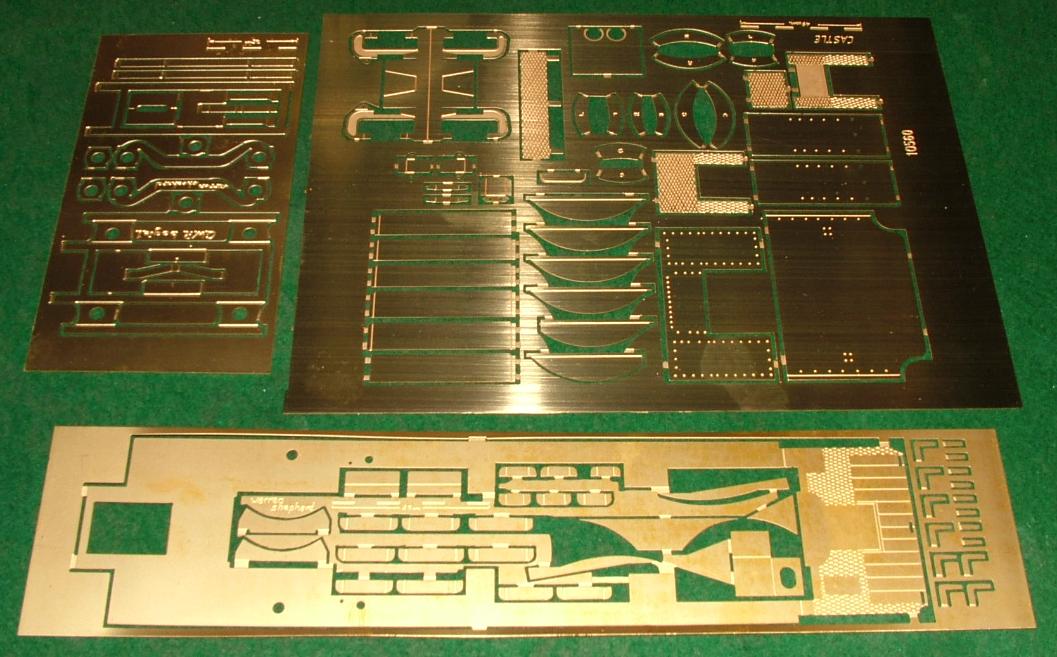

CLE11; CLE12 & MBE10

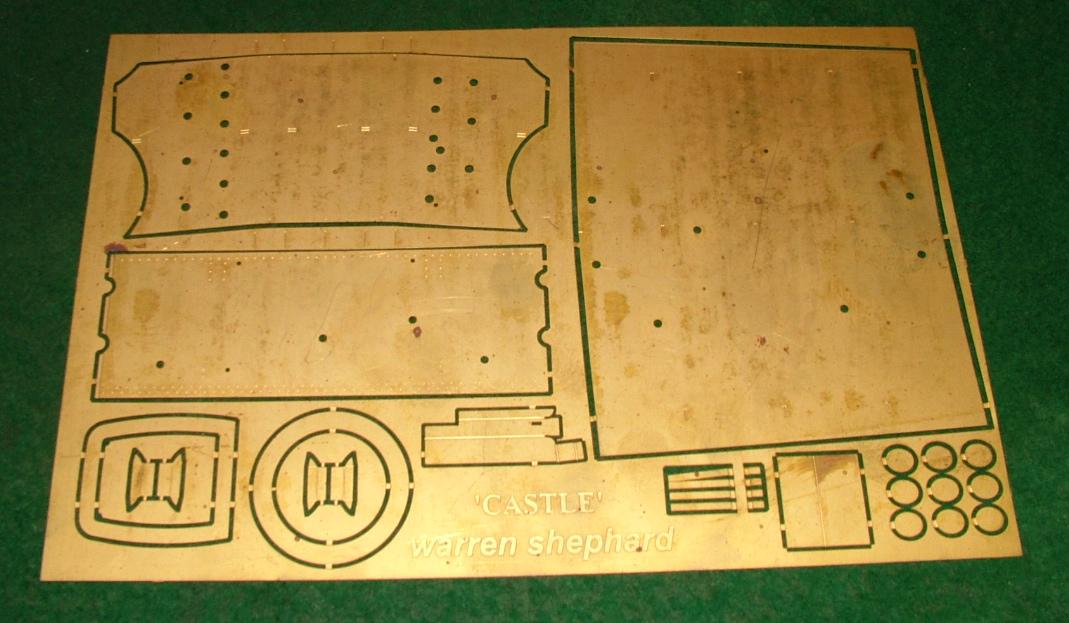

CLE 13 Boiler, firebox & S/box wrapper

CLE 10 Frames, Cab, Cylinders etc. 28.50   SBD 1 S/box door pressing 3.00ea
CLE 11 Ftplate, ftsteps, lamp bkts 14.40   SBR 4  S/box ring pressing  3.00ea
CLE 12 Cab roof, splashers, cylinder clading 11.45   TP 4  Throat plate pressing 6.50ea
CLE 13 Boiler, firebox & S/box wrapper 17.50  Loco etchings & pressings 86.25
MBE 10 Bar frame bogie 11.50  Loco / tender etchings & pressings 126.50

Kit Parts include the following items:-

Etchings and pressings;

Premier Components:- Connecting and jointed coupling rods

Northampton Model Supplies backplate

See Tender Pages for alternative tender for this loco

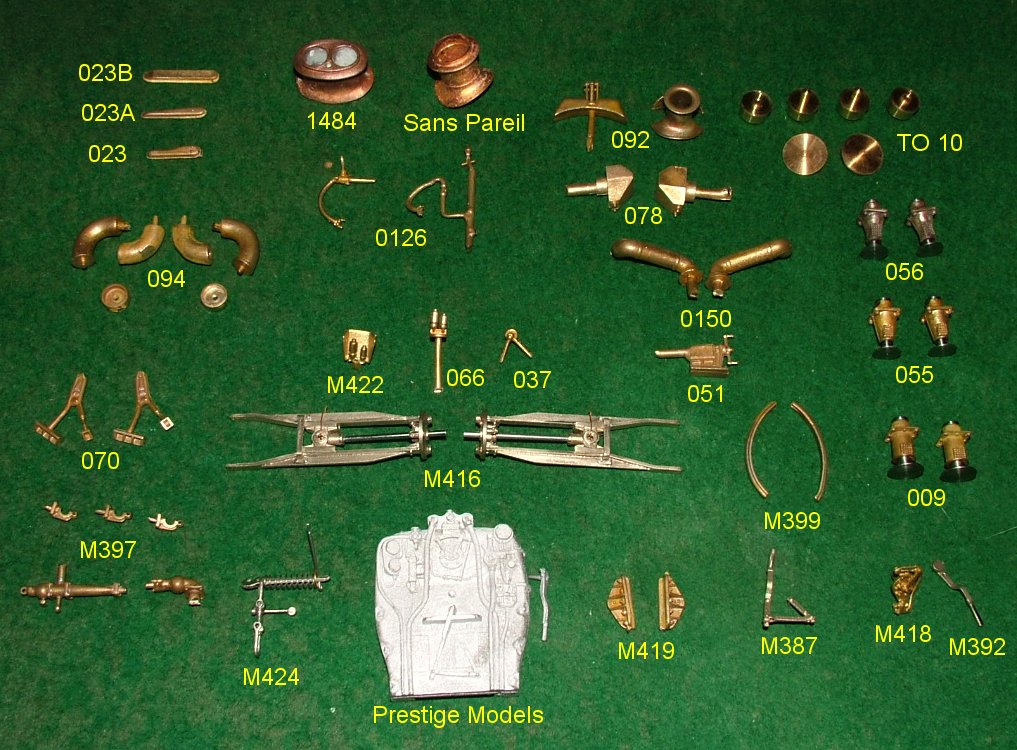

Castings

009  Collett parallel buffers 12.00 078 Rear Sand boxes  5.60pr M387 Fire hole door handle  N/A 5.00
023 S/box Oil pipe cover 2.10 092 Top feed, Safety valve & bonnet 12.50 M392 Regulator handle  N/A 4.30
023A S/box Oil pipe cover 1.50 094 BR pattern outside steam pipes 6.25 M397 4 Cone ejector set 14.70
023B S/box Oil pipe cover 2.10 126 Vacuum & steam heating pipes 8.75 M399 Top feed pipe casing 6.00pr
030 AWS bell 2.50 150 GWR pattern outside steam pipes 6.25 M416  X head & slide bar ass. N/A 44.00pr
037 S/box door dart handle 3.00 1484 Double chimney 12.50 M418 Reg mechanism 6.50
051 Screw reverser 4.40

182 Castle brake hangers & stretchers

10.50 M419 Bogie bearing bracket 9.70pr
055 Collett taper buffers 12.00

Sans Pareil Chimney (Tall or short vers)

6.50 M422 Whistles & sheild  N/A 6.00
056 Dean taper buffers 12.00 Sans Pareil Crosshead & slide bars

22.00pr

M424 Screw couplings (pair)  N/A 14.10
066 Whistles 4.40 Sans Pareil Coupling Rods

14.00pr


070 Footsteps 3.75pr Springside Plastic brake Blocks 1.50 Northampton Models backplate 7.50

Walsall Model Industries :- Wheels   Slaters Plastikard :- Wheels   Premier Components :-
Loco only 102.94 Loco only 102.94 Coupling and connecting rods 35.00
Loco &Tender 151.33 Loco &Tender 144.00


All plus P&P @ Royal Mail cost.



both 2 Rail Fine Scale.  Prices may vary, please check when ordering.



     Click on Sans Pareil and Martello for more GWR castings
