Grange Class 4-6-0

Updated 23rd October 2015

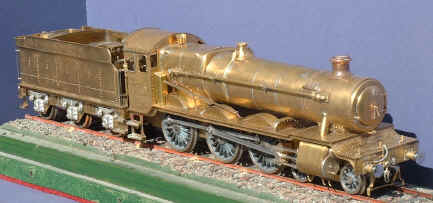

Loco built by L. Scarlett

Boxed Kit:-  240.00 [incl Tender Kit 320.00]

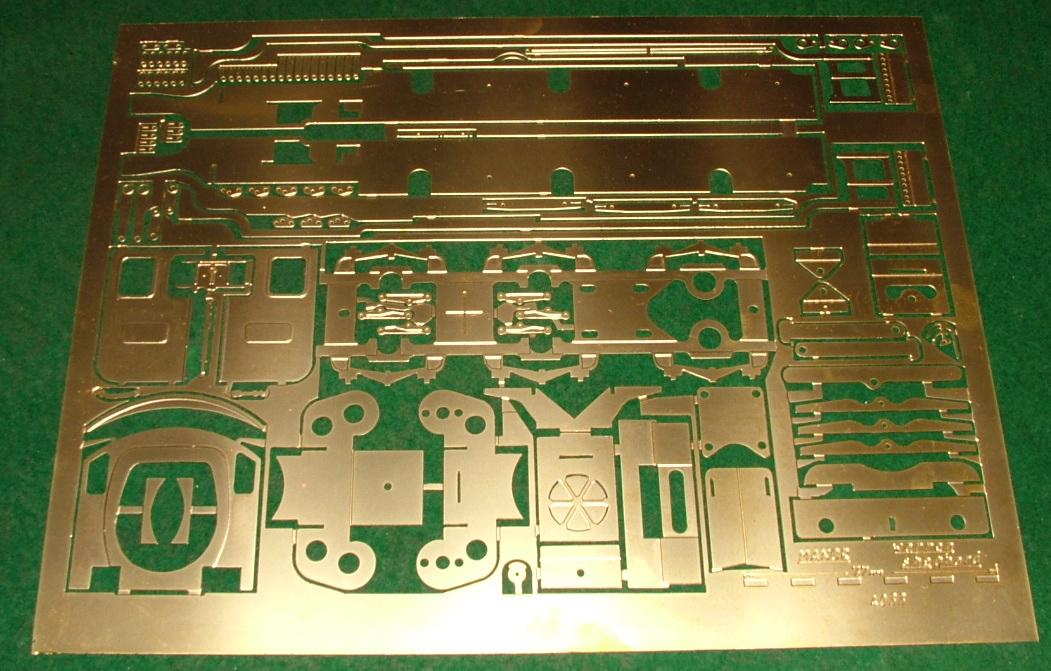

GLE 30 Frames, Cab, Cylinders etc.

GLE 31; 32 & MBE10

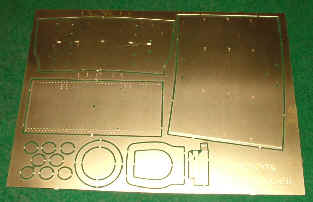

GLE 33 Boiler, firebox & S/b wrapper

GLE 30 Frames, Cab, Cylinders etc. 28.75 SBD 2 S/box door pressing 3.00ea
GLE 31 Footplate, ftsteps, lamp bkts 14.40  SBR 5  S/box ring pressing  2.00ea
GLE 32 Cab roof, splashers, cyl clading 11.45 SBR 5  S/box ring pressing  6.50ea
GLE 33 Boiler, firebox & S/b wrapper 17.50 Loco etchings & pressings 86.25
MBE 10 Bar frame bogie 11.50 Loco / tender etch & pressings 126.50

See Tender Page for suitable tender for this loco

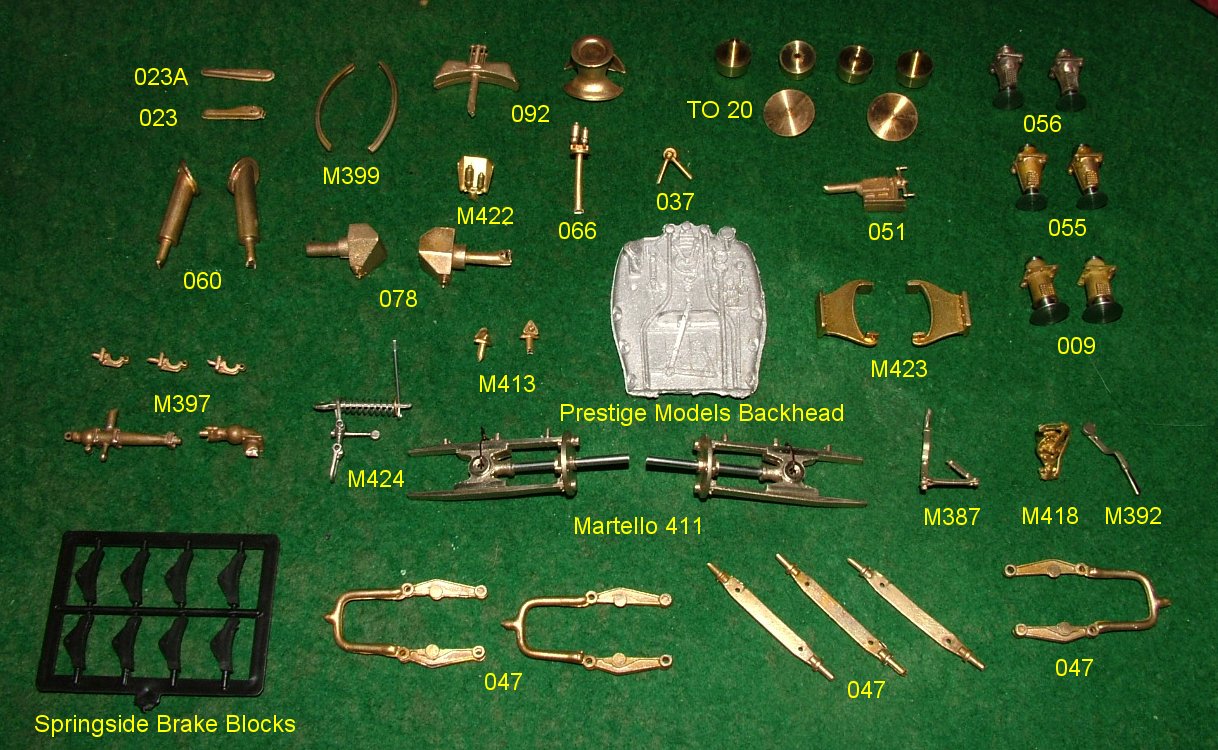

WSD 009 Collett parallel buffers 13.00 Martello castings   Premier Components :-
022 AWS bell & battery box 2.50 M387 Fire hole door handle  N/A 5.00ea Jointed coupling and connecting rods 35.00
023 Smokebox oil pipe cover 2.10 M392 Regulator handle  N/A 4.30ea
023A Smokebox oil pipe cover 2.10 M397 Four cone ejector set 14.70 Walsall Model Industries :- wheels
037 S/box door dart handle 3.00 M411 Crosshead & slide bar assembly   43.50 Loco 98.68
051 Screw reverser 4.40 M413 Snifting valves 7.93pr Loco & tender 147.07
047 Brake hangers & stretcher 9.30 M418 Regulator operating mechanism 6.50

2 Rail Fine Scale


055 Collett taper buffers 13.00 M421 Cylinder drain cocks  N/A 5.00
056 Dean taper buffers 13.00 M422 Whistles & shield  N/A 6.00 Slaters Plastikard :- wheels
060 Steam pipes 3.50 M423 Motion brackets 12.00 Loco 102.00
066 Whistles 4.40 M424  Screw couplings Unavailable at present   Loco & tender 144.00
078 Rear Sandboxes 5.60

2 Rail Fine Scale

093 Safety v/v & bonnet 12.50

Prices may vary, please check when ordering

126 Vacuum & steam heating pipes 8.75

  Sans Pareil and Martello for more GWR castings
