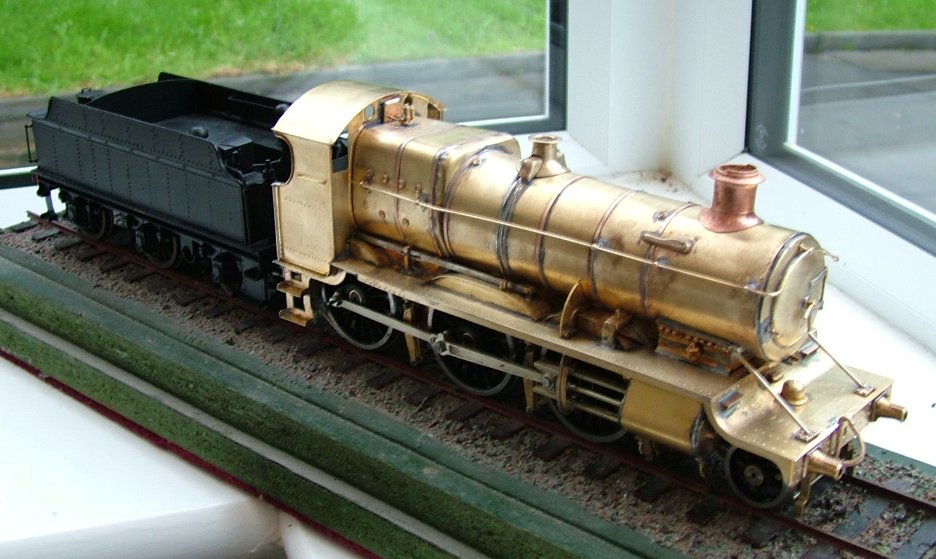

GWR 2-6-0 Mogul

43/53/63/73/93xx Classes

Updated 23rd October 2015

Boxed Kit:-  260.00

Loco & Tender Kit:- 340.00



Frames, running plate, cab, firebox, boiler, smokebox, brake gear,

smokebox door pressing and smokebox ring pressings.  Handrail knobs and wire,

plus set of lost wax brass castings, and a L/W brass back head.

Premier Components jointed coupling rods  &, Connecting rods.

Set of step by step assembly drawings.

Wheels, motor, paint, screw couplings, Transfers and # plates not included in the kit

See Tender Page for suitable tender for this loco

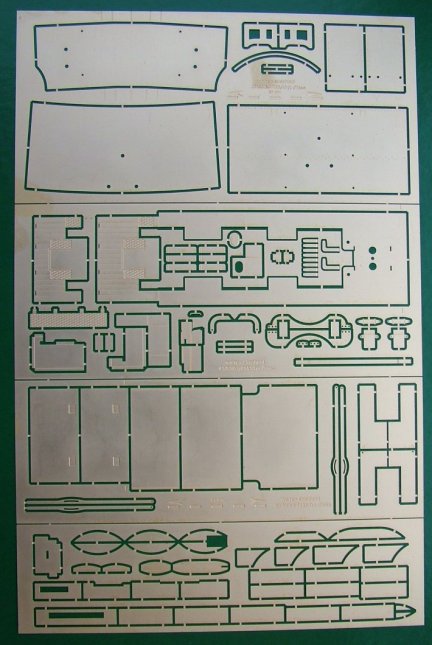

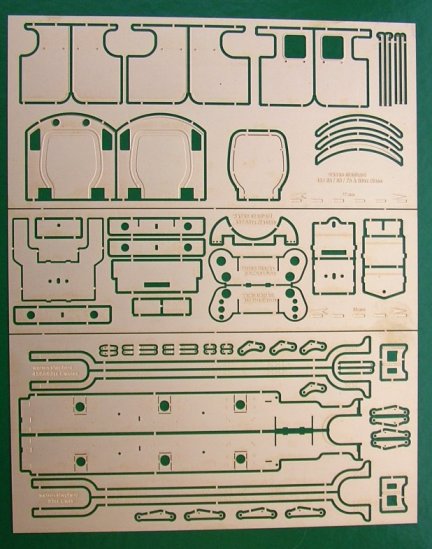

Etchings & Castings

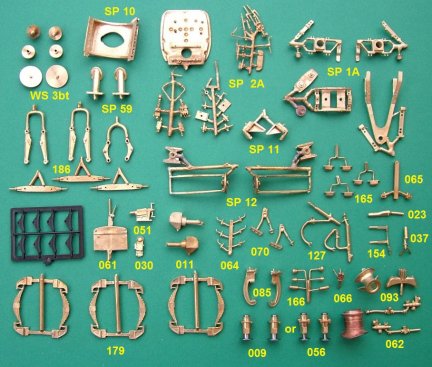

 Castings available separately

002 Pony truck spring cover 2.00
009 Collett parallel buffers (set of 4) 13.00 Pressings:- Smokebox Rings & smokebox doors 3.00 ea
012 Sand boxes (oval lid; pair) 5.60 Pressings:- Firebox throatplate 5.00
022 AWS bell  (not shown) 2.50
023 S/box oil pipe cover 2.10 Sans Pareil Backhead 25.00
037 S/box door handle 3.00 Sans Pareil Tank fillers (Screw lid) not shown
051 Screw reverser 4.40 Sans Pareil Chimney 6.50
056 Dean tapered buffers (set of 4) 13.00 Sans Pareil Steam pipes (pair) 2.50
061 Lever reverser 4.40 Sans Pareil Motion Brackets (pair) 6.50
064 Cylinder drain cocks 4.00 Sans Pareil 45xx slidebar & X head Assembly (pair) 25.00
066 Whistles 4.40 Sans Pareil Safety v/v & bonnet (Tall or short) 11.50
070 Footsteps 3.75 Sans Pareil Rocker arm bearing bkts (pair)
085 Motion Brackets (pair) 6.25 Sans Pareil Pony truck 13.50
127 Vacuum & steam heating pipes 8.75 Sans Pareil Vacuum pump
154 GWR smoke box door hinge 4.40 Premier Components:-
164 Brake weighbar shaft 5.60 Jointed coupling rods and connecting rods 35.00
165 Oil reservoirs (2 pairs) 4.40
166 Sand box lids & oil pots 4.40     Walsall Model Industries:- wheels
169 Brake hanger brackets 5.60 2 Rail Fine Scale set 83.06
173 Brake column 4.00 Slaters Plastikard:- wheels
174 Injector water valve 4.00 2 Rail Fine Scale set 67.58
175 Slacker pipe valve 4.00
186 43xx Loco brake hangers (2 pair + 1pair) 10.50
177 45xx whistles 4.40

Prices may vary, please check when ordering
